Original price was: $3,500.00.$2,500.00Current price is: $2,500.00.
+ $400 Flat DeliveryAvailable 20ft container chassis. perfect for your standard load of 20-foot ISO containers.
All new 20-foot chassis from Inter-modal Containers Ltd Equipment fit your specific requirements and needs. Contact us today for a free quote or to talk with one of our intermodal equipment specialists!
Container chassis are available in a variety of types, but the one you choose will depend heavily on your needs, budget, and shipping requirements. Such chassis can accommodate many different weight loads, as well as container sizes and types (including specialized containers). The chassis plays an important role, as it connects and carries the weight of cargo between modes of transport.
Inter-modal Containers Ltd offers a variety of used chassis for sale to fit every containerized load. Our used intermodal container chassis are available in major depots in North America.
Container chassis is a specifically designed trailer frame to accommodate a wide range of container types (both standard and special boxes). It can carry any load and maneuver effortlessly. They’re available in various types, and you can choose one according to your requirements. This dynamic equipment is the support system of the entire supply chain network.

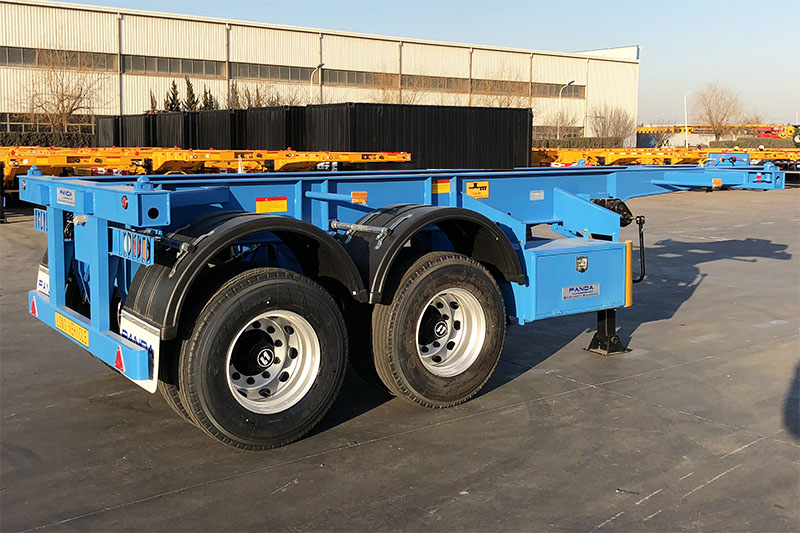

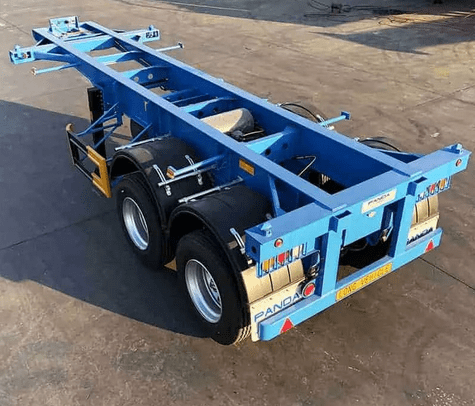

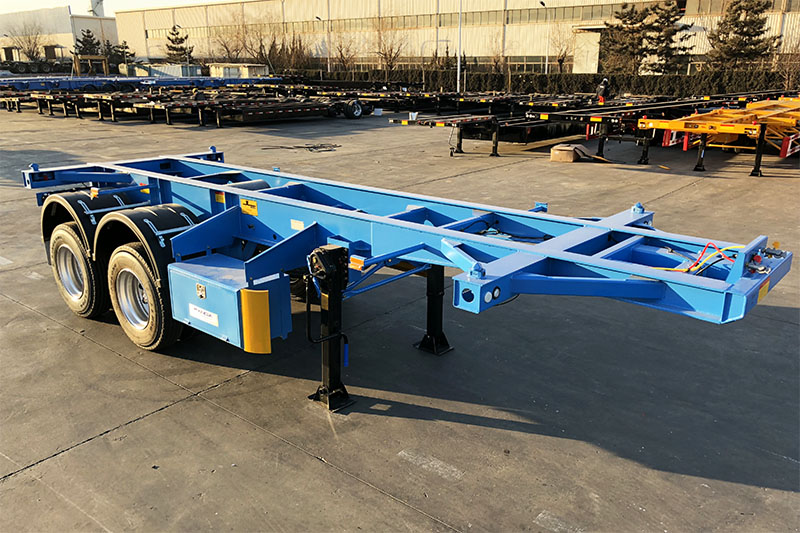

20′ Intermodal container chassis for sale overall length 23’6″Overall Width 8’Frame Height 48” (standard dock height)
Carrying capacity (container size) 20′ marine container Carrying capacity (weight rating) 67,200 lbs.Tare Weight 6,700 lbs.Number of axles 2Number of tires 8
All chassis are recently ex. Ocean carrier service and sold on an “As Is, Where Is Basis” Delivery is not included in the price
Our chassis are well-maintained to meet Federally and locally mandated roadability laws. Our chassis were manufactured to provide high-reliability and feature components such as sealed beam LED lighting, extra-heavy-duty landing gear, specially coated brake shoes, and locking mechanisms that better withstand damage.
While in service, chassis were maintained and repaired under the supervision of our depot and pool technical staff to assure our customers of safe and reliable service. Chassis come in sizes tailored to the containers they carry, with some chassis being adjustable for different containers.
Chassis come in various sizes and configurations. We have some of the more popular sizes for sale in most ports. Some rental chassis are available on a limited basis in Tampa and Long Beach, and other locations soon.
Container Chassis is designed and built according to the Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
The container chassis frame and main fabricated parts are made from high strength low alloy steel ASTM A572 Grade 50, having a minimum yield point of 50,000 PSI or higher. Some of the standard components include 10×20 tires on 5-spoke wheels, spring suspension, an antilock braking system (ABS), and two-speed landing legs. Lots of available upgrades from radials and air rides to paint color. Chassis can be stacked for power-only transport
intermodal container chassis
Common Container Chassis Trailers come in
20 ft Container Chassis
Intermodal chassis are utilized within the shipping and railroad industries to bring containers to and from railroads and ports to the end customer. They can transport containers from trucks between ports, terminals, and warehouses, acting as critical support in the supply chain.
They are comprised of a steel frame with tires and axle systems, brakes, suspension systems, and lighting, as well as add-ons such as GPS, LED lighting, weight sensors, and more.
|
Standard chassis can haul standard containers of 20ft to 40ft with two axles. You will need a tri-axle chassis if you intend to transport 20-foot containers weighing more than 36,000 pounds or 40-foot containers weighing more than 44,000 pounds.
Inter-modal Containers Ltd was built on designing and manufacturing the lightest, strongest, and most durable Container Chassis in the industry. With hundreds of different models, our container chassis are designed to haul a variety of sizes including but not limited to 8′, 10′, 12′, 20′, 40′, 45′, 48′, and 53′.Inter-modal Containers Ltd also offers hydraulic tippers that can tip up to 45 degrees. We offer tandem axle, widespread, tri-axle and low deck models with a variety of options. Inter-modal Containers Ltd uses a specially engineered steel frame to reduce tire weight, increase payload, and lower operation maintenance. When producing your Container Chassis, Inter-modal Containers Ltd uses the most advanced laser and plasma equipment available as well as the latest techniques in jigs and fixtures.
Inter-modal Containers Ltd is known as the leading supplier of tank chassis over any other manufacturer in the intermodal industry. Over forty-five major bulk carriers and shippers utilize Inter-modal Containers Ltd’s ISO tank chassis. The Inter-modal Containers Ltd drop frame chassis is designed for low deck heights and higher stability. Inter-modal Containers Ltd has a variety of Tank Chassis available in various configurations including but not limited to the tandem axle, tri-axle, spread axle, and closed tandem designs. Inter-modal Containers Ltd also offers the ability to transport two 20′ ISO Tank Chassis on our Hi-Lo models.
Buy 20ft Container Chassis Online
