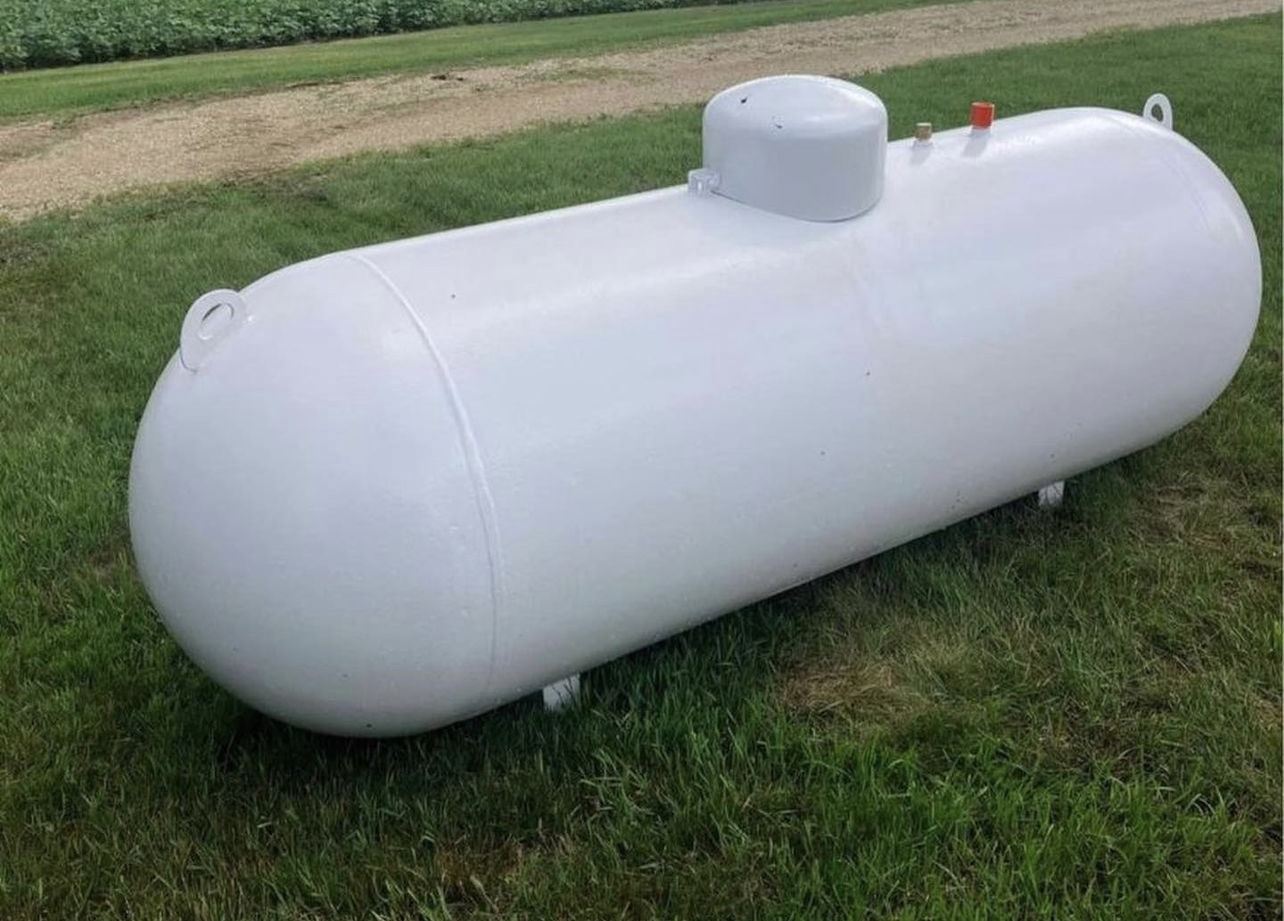

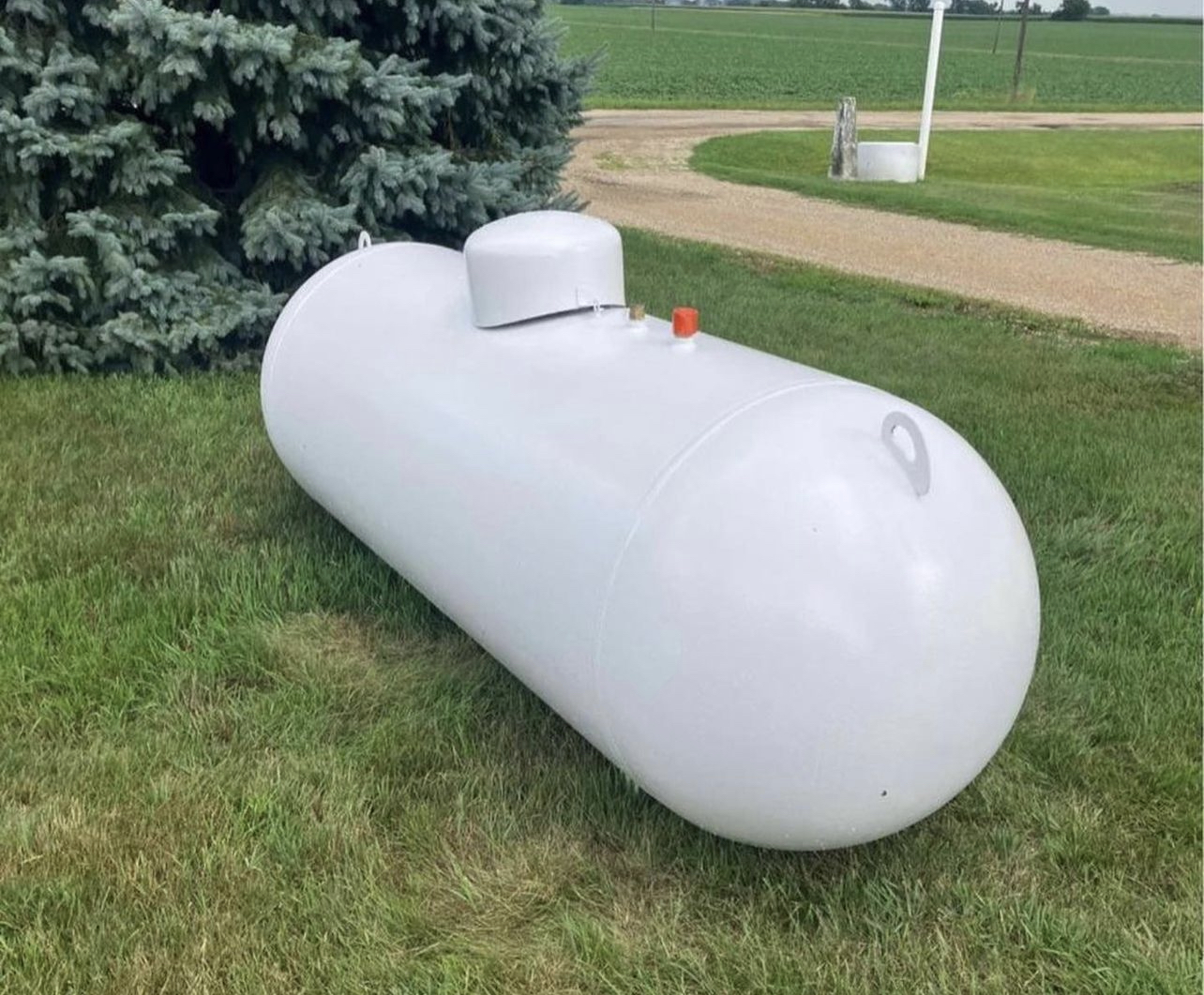

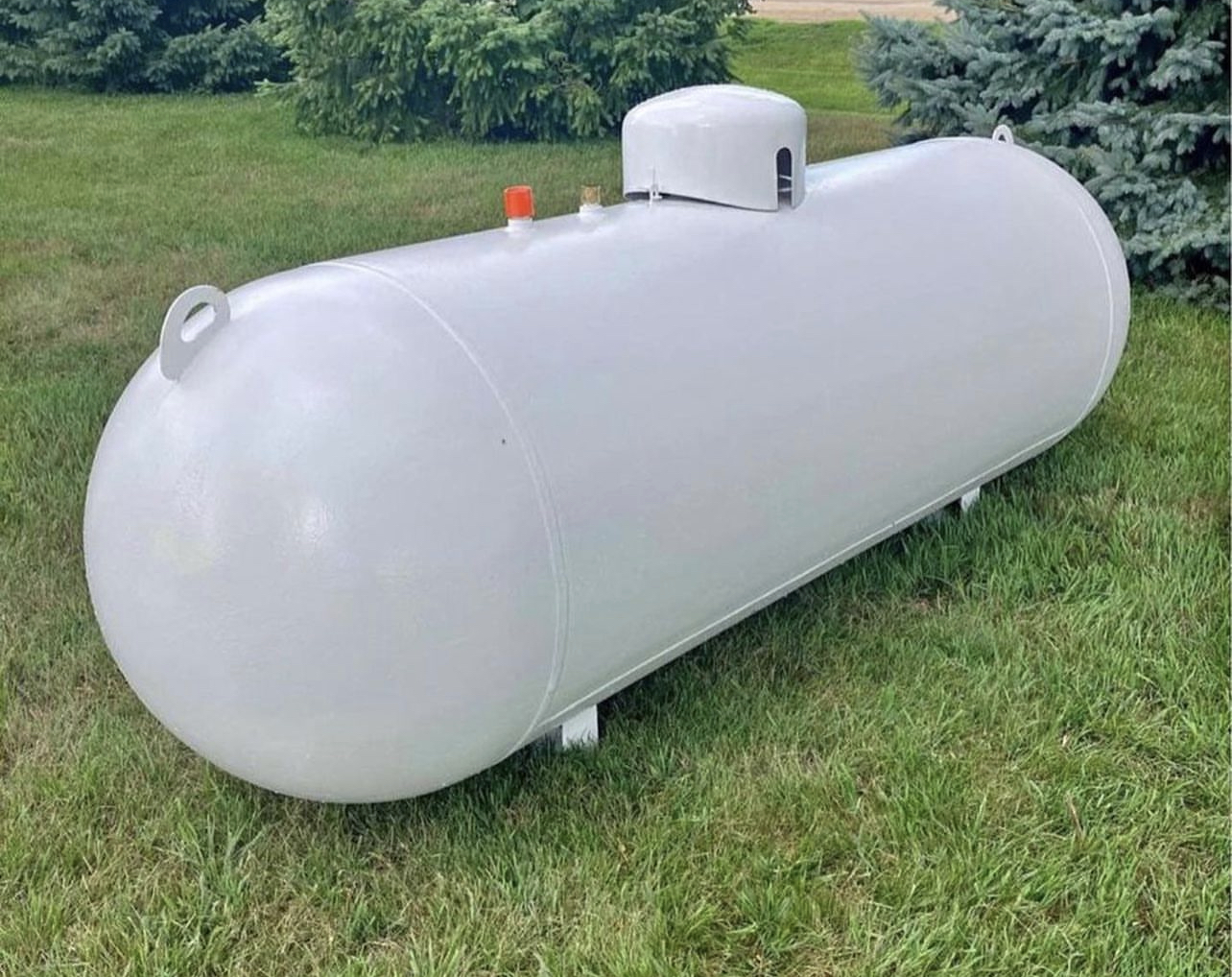

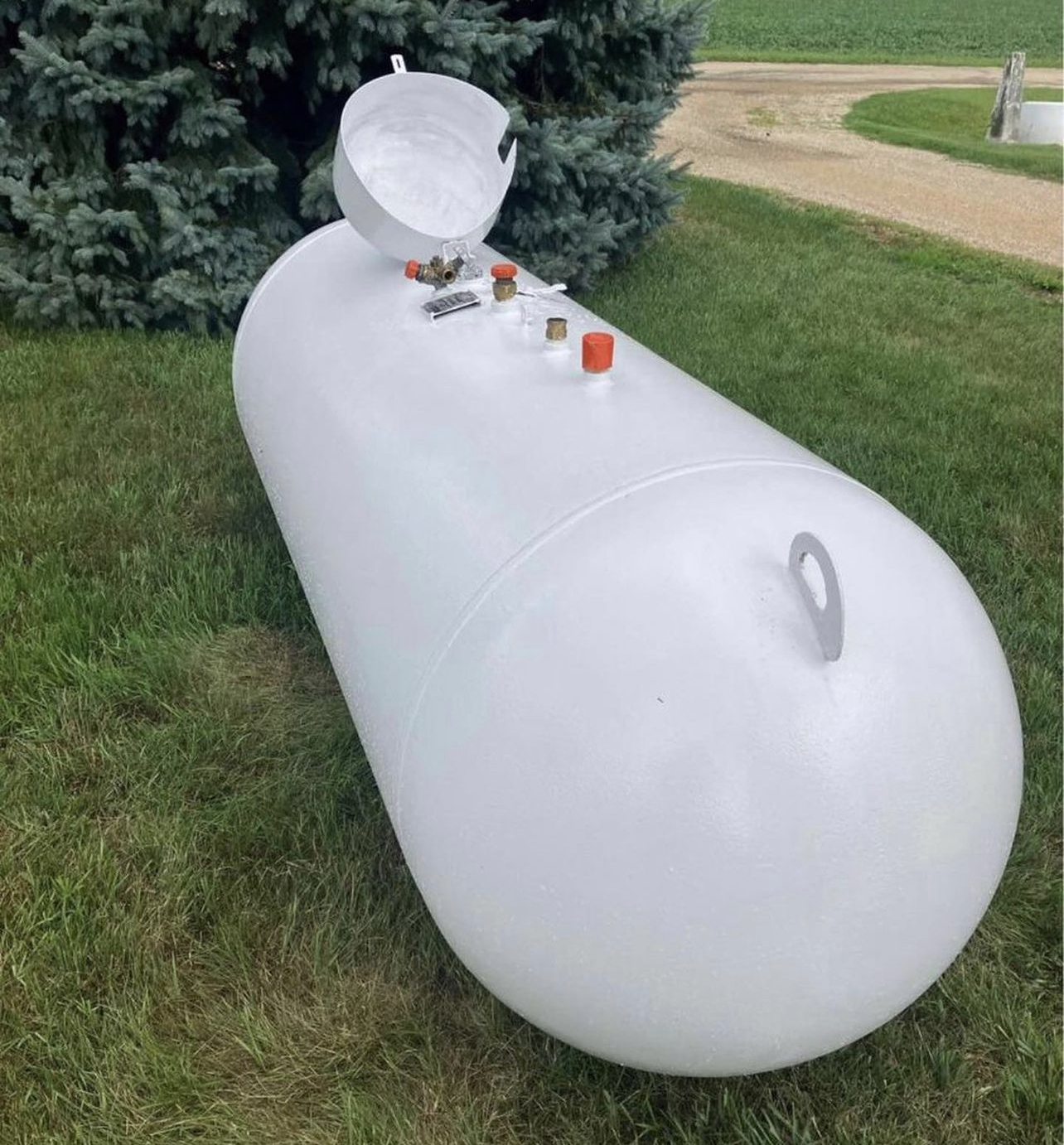

500 Gallon Uderground Propane Tank – ASME
500 gallon propane tank is commonly used for heating a home or commercial space, pool heater and/or generator. Installation of a 500 gallon propane tank is a great solution when you need a propane tank but don’t want to see it. Includes tank dome and lid for 500 gallon propane tank. This gallon propane tank is installed underground. 500 gallon propane tank is only available for sale on Long Island.
Tank Capacity: Holds approx. 425 gallons of Propane
Tank Dimensions (lwd): 9′ 10″ x 37.42″ x 4′ 6 1/2″
Type: Underground Propane Tank
Tank Features:
- Superior, ready to bury, red oxide durable powder coating
- Black polyethylene shroud for durability and easy access
- Duplicate stainless steel nameplate
- Anode bolt attached on riser for easy, secure cathodic connection
- Dual lifting lugs for 500 wg and 1,000 wg
- Steel galvanized domes in select colors
- Vacuum Purge
- #72 liquid level outage valve orifice
Tank Specifications:
- Conforms Conforms to the latest edition of the ASME, Section VIII, Division 1. Complies with NFPA 58.
- Container pressure rated at 250 psig from -20° F. to 1252 F.
- Vessel Finish: Coated with TGIC red powder.
- All tanks may be evacuated to a full
- (14.7 psi) vacuum.
